The Nairn Street Cottage

This Blog describes the changes made to 77 Nairn St Te Aro Wellington.The property is owned by "The Thompson Street Partnership" To enlarge an image : double left click image , mac users ? do whatever you mac users do.

Name: murray

View my complete profile

Saturday, September 30, 2006

French Oak floor
Posted by Picasa

Thursday, September 07, 2006

Plumbing exposed
Posted by Picasa

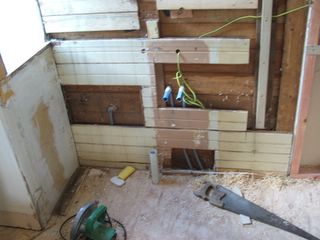

Kitchen pre-line
Posted by Picasa

Kitchen pre-line
Posted by Picasa

Bonding Plywood to original T & G flooring
Posted by Picasa

Saturday, September 02, 2006

Existing floor given basic prep with 40 grit on belt sander
Posted by Picasa

Edge rebate
Posted by Picasa

Rebate in plywood bridges different floor levels
Posted by Picasa

12mm Ply overlay
Posted by Picasa

12 mm Ply overlay
Posted by Picasa

Friday, September 01, 2006

East Elevation of kitchen
Posted by Picasa

South end kitchen elevation
Posted by Picasa

Kitchen floor plan
Posted by Picasa

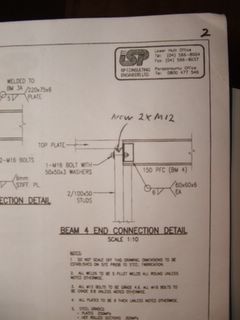

2 X M12 Bolts to 150 PFC
Posted by Picasa

Nail plates either side of compression member.
Posted by Picasa

Self explanatory compression member between 150 & 180 PFCs
Posted by Picasa

South end of 150 PFC showing bolt up
Posted by Picasa

North end of 150 PFC bolted in place
Posted by Picasa

South end pile cast in concrete and strapped to 150 PFC support studs
Posted by Picasa

North end pile cast in concrete & strapped to stud.
Posted by Picasa

H5 Piles avec straps.
Posted by Picasa

Really Bad picky of North end pile hole
Posted by Picasa

South end pile Hole.
Posted by Picasa

So who can't spell elevation then ???

So who can't spell elevation then ???
